Dust and Slurry Collection Accessories

See the WA government's info on the dangers of working with silica dust here. It also shows how to manage the risks involved when working with silica dust.

Dust Collector to suit 100 - 125mm Grinders using diamond blades

Nakaya NK-125  Tornado Dust Extractor

  • 2009 IDS Design Competition Technical Award
  • Suits 4"/100 - 5"/125 mm diamond blades, 1.5 - 2.2mm thick, used on Angle Grinders
  • Cut depth 5-33mm
  • Hybrid dust collection - bag mode (up to 90% dust) or vacuum (up to 100% dust )
  • Easy Blade Change - doesn't interfere when changing blades
  • Universal design allows use with a wide range of grinders
  • See through duct allows view of cutting line
  • 520 grams (main unit)
  • Suit Bosch GWS9, GWS10, GWS14, Makita 9558NB, 9565CV, Hitatchi (Hikoki) G12SR3, G13SEG2, G13SB3, Milwaukee, DeWalt, Metabo etc
  • Grinder and vacuum not included
  • $275 incl GST
  • Accessories - Dust bags (5 pack), foot plate and T-Guide also avaiable

Dust Collector to suit 115 - 125mm Grinders using diamond blades

Nakaya NK-125CY  Cyclone Dust Extractor

  • A simpler designer of the NK-125 Tornado, the CYCLONE will collect more than 97% of the dust during the work when used with a 1000 watt vac.
  • Suits 99% of 5"/125mm angle grinders
  • The improved front guide always keeps CYCLONE stable in any situation - not only in normal cutting, but also grooving, and tuck-pointing.
  • 4.5"/115 - 5"/125 mm diamond blades, 1.5 - 10mm thick, used on Angle Grinders
  • Easy Blade Change (EBC) System mans there is no need to detach the Angle Grinder from CYCLONE anytime.
  • Cut depth 5-33mm (when using 5"/125mm blade)
  • $215 incl GST

Dust Collector to suit 100 - 125mm Grinder using diamond cup wheels

Nakaya NKC-125  Hurricane Dust Extractor

  • Suits 4"/100mm – 5"/125 mm diamond cup wheels used on angle grinders
  • For masonry grinding, reduces dust by up to 97%
  • Stable and smooth dust free grinding near a wall
  • Universal design allows use with a wide range of grinders
  • With Flex –Seal System, which flexs to ensure a tight seal for maximum dust extraction.
  • 340 grams
  • Suit Bosch GWS9, GWS10, GWS14, Makita 9558NB, 9565CV, Hitatchi (Hikoki) G12SR3, G13SEG2, G13SB3, Milwaukee, DeWalt, Metabo etc
  • Grinder and vacuum not included
  • $275 incl GST
  • Accessories - Brush skirt and magnetic cover

Dust Collector to suit 180 - 230mm Grinders using diamond blades

Nakaya NK-230  Hurricane Dust Extractor

  • Suits 7"/180 - 9"/230 mm diamond blades used on angle grinders
  • Multi-Adapting System to suit most popular 230mm Grinders
  • Plunge Dust Control System (maximum cutting depth 40mm for effective dust extraction)
  • Stabilizing Bar System – Front / Rear support bars stabilize the whole system,  and the six rollers roll over the work surface for a smooth cut
  • Suit Bosch, Makita , Hitatchi (Hikoki) , Milwaukee, DeWalt, Metabo etc
  • Grinder and vacuum not included
  • $325 incl GST

Dust Collector to suit 180-230mm Grinder using diamond cup wheels

Nakaya NKC-180  Hurricane Dust Extractor

  • To suit 99% of 180-230mm Angle Grinders
  • Stable and smooth dust free grinding near a wall
  • Designed and manufactured in Japan
  • Grinder and vacuum not included
  • $295 incl GST

If you are cutting, drilling or grinding dry, always be aware of the danger of breathing in the dust. Ensure a dust extraction system is used with a suitable filter fitted. Use a half face respirator or a PAPR (Powered air purifying respirator). For more info on silica, see Safe Work Australia's info here.

DTA Products:

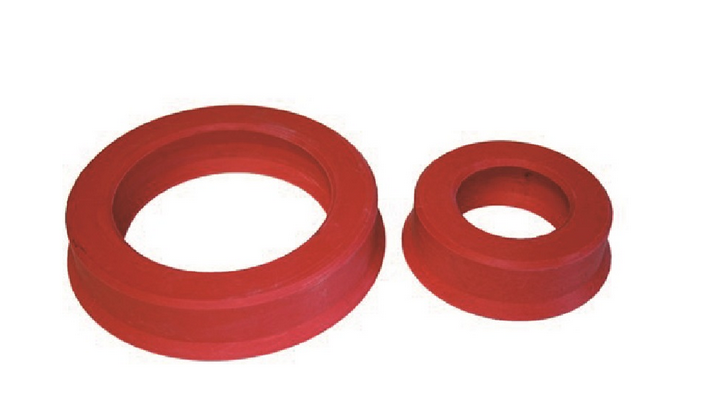

SRS Suction Ring Set

SUCTION RING SET 38MM & 75MM

Water containment for wet drilling. Push the ring down on a flat, smooth horizontal surface and fill with water.

$15 incl GST each - ex stock

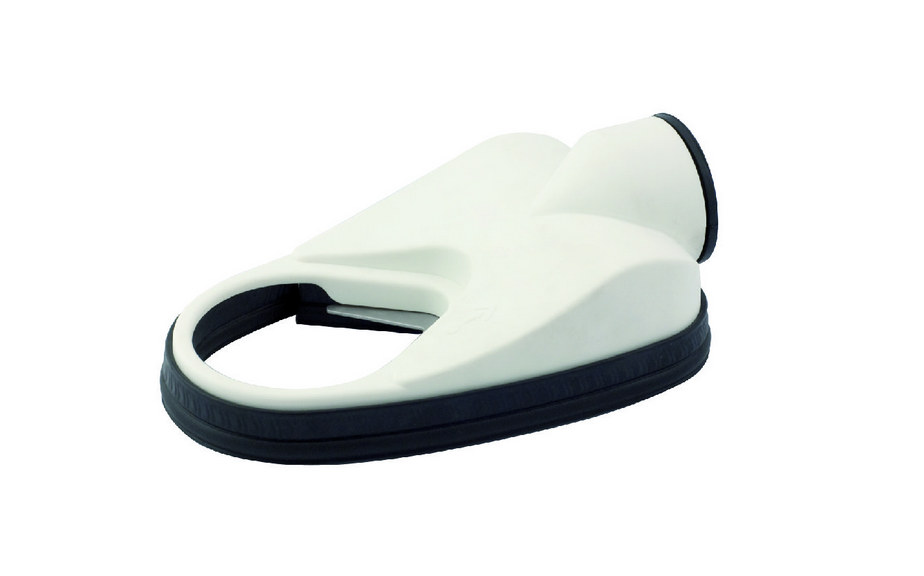

 DEXSG Dust Extractor suction guide

DUST EXTRACTOR SUCTION GUIDE

For dust free drilling
Suits vac hose 32mm - 37mm
Suitable for tile, plaster, stone and other non porous materials
Suits drills up to 65mm diameter
Made from durable plastic
See video of this in use at the bottom of this page

$35 incl GST each - ex stock

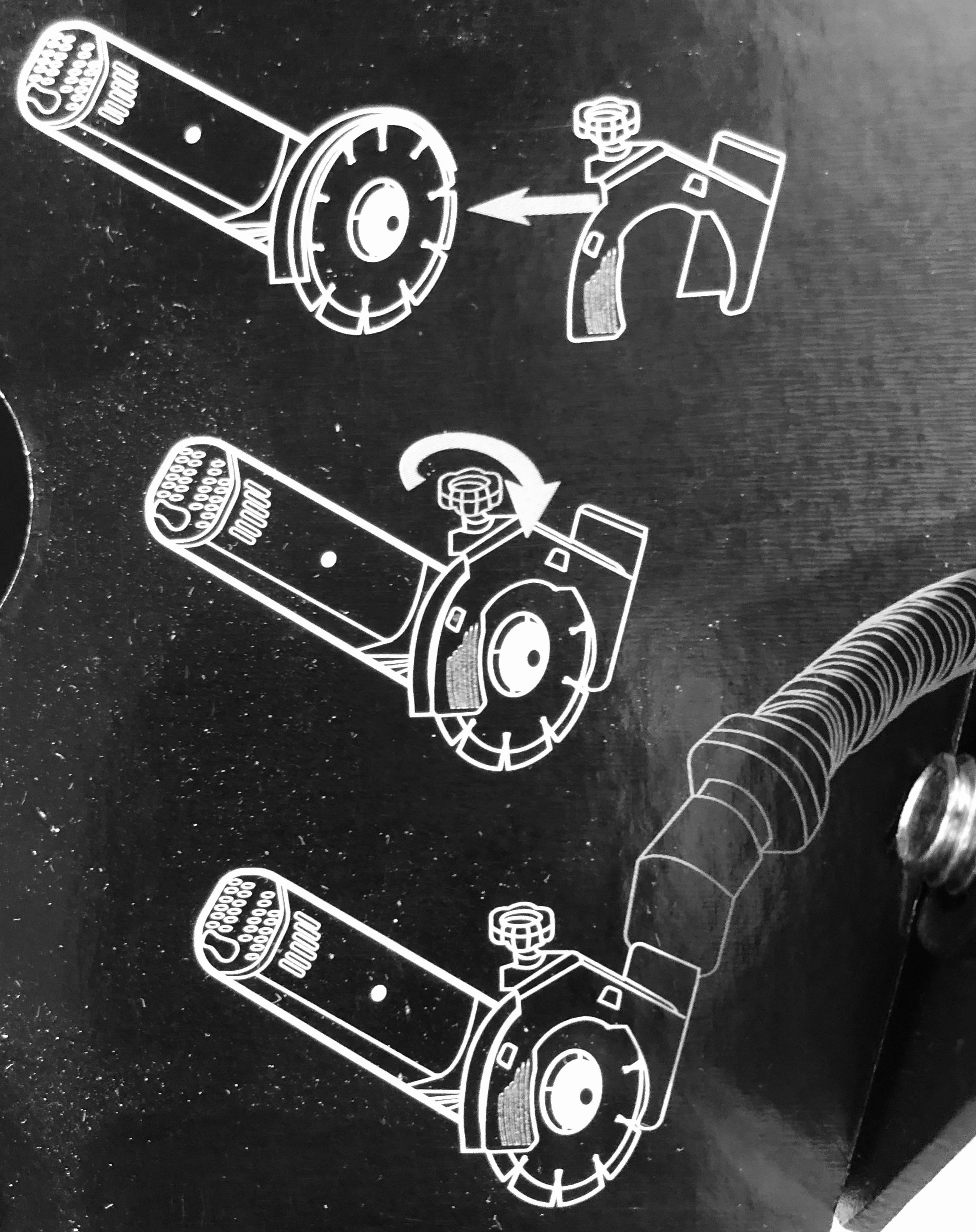

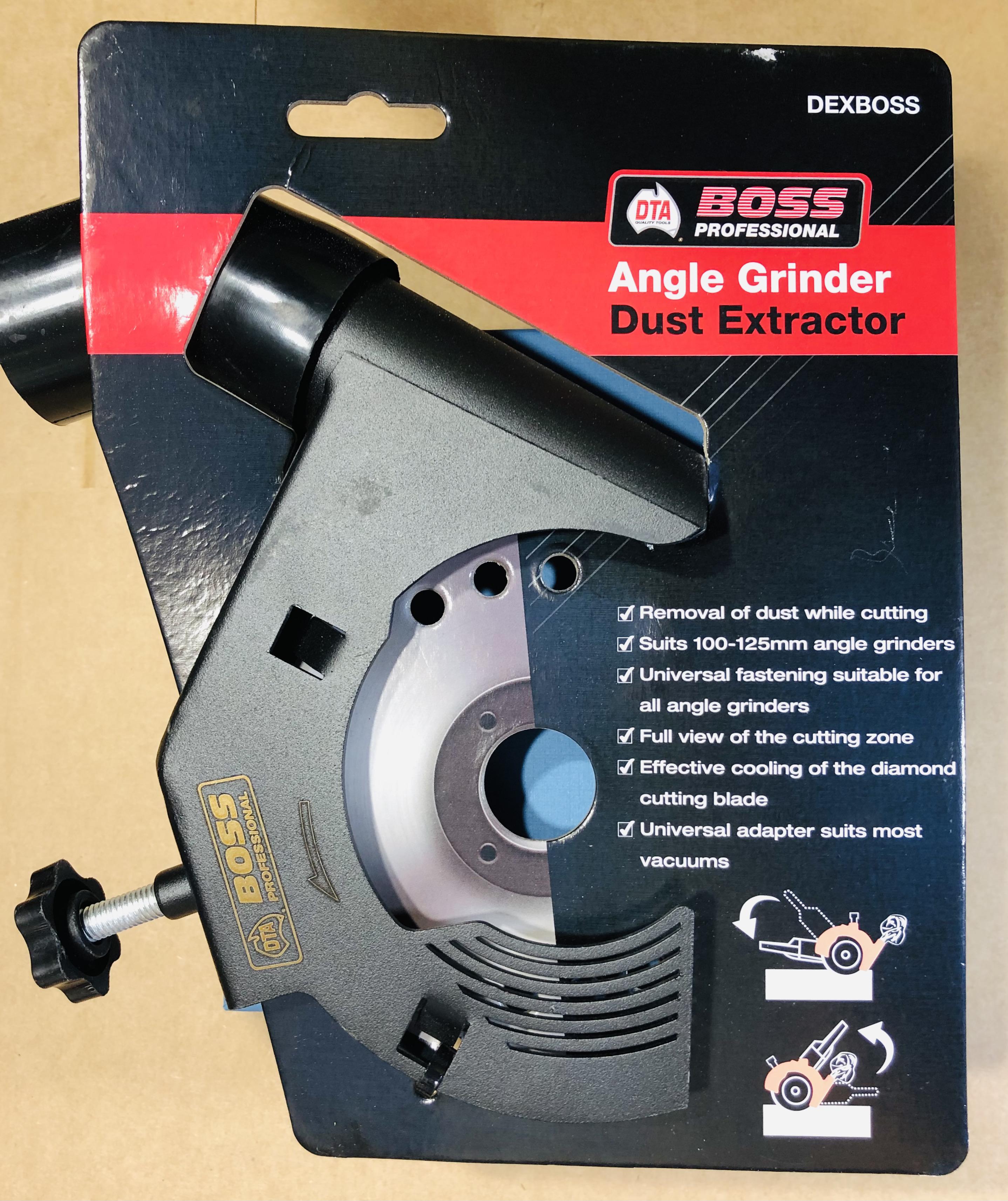

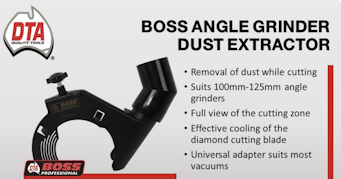

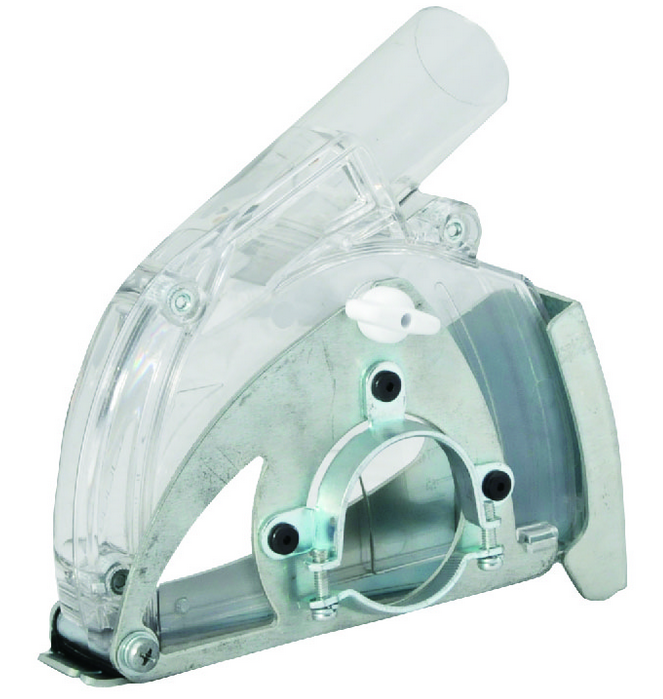

 DEXBC Dust Extractor blade cutting

DUST EXTRACTOR BLADE CUTTING

Removes dust while cutting
Universal adaptor to suit most vacuums
Suits most 4"/100mm - 5"/125mm blades
See video of this in use at the bottom of this page

$65 incl GST each - ex stock

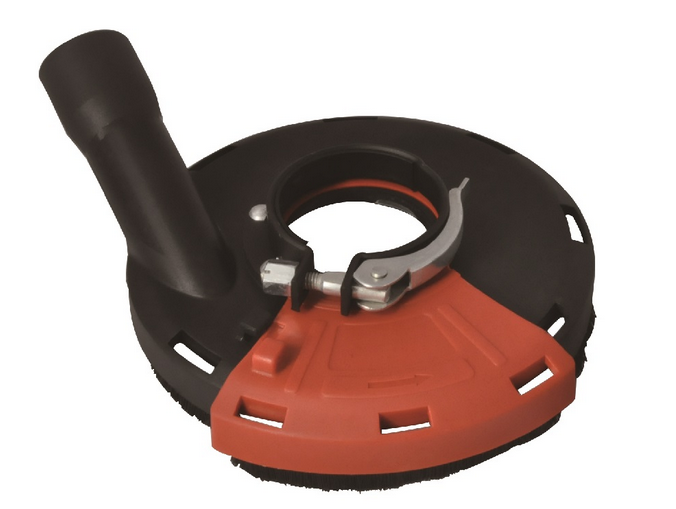

  DEC125 Dust Extraction cover - 125mm/5"

DUST EXTRACTION COVER SUITS GRINDING DISCS TO 125MM

Ideal for use with 100mm - 125mm grinding cups
Removable guard for grinding close to walls
Universal adaptor to suit most vacuums
Brush base provides a cushion support for base
Attachment sleeve suits most 4"/100mm - 5"/125mm grinders
See video of this in use at the bottom of this page

$70 incl GST each - ex stock

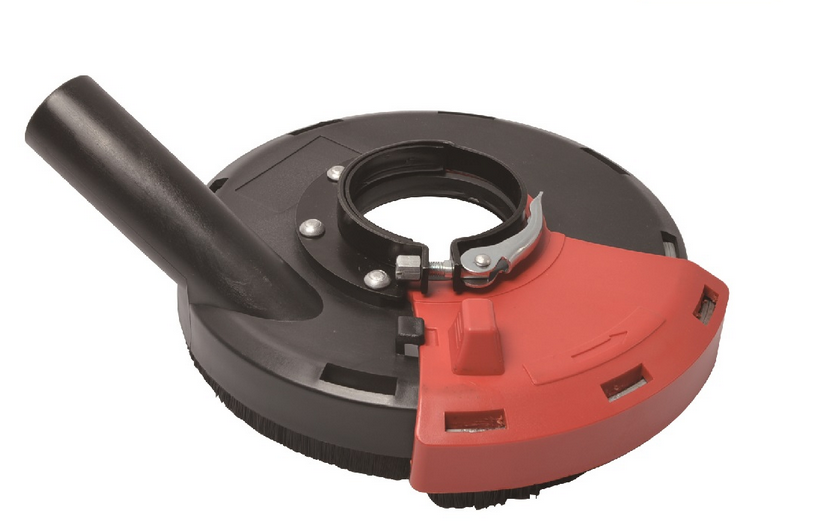

    DEC180 Dust Extraction cover - 180mm/7"

DUST EXTRACTION COVER SUITS GRINDING DISCS TO 180MM

Ideal for use with grinding disks
Removeable guard for grinding close to walls
35mm vacuum outlet
Brush base provides a cushion support for base
Attatchment sleeve suits most 7"/180mm grinders

$95 incl GST each - ex stock

Prices correct as of 1/8/19 but subject to change.

See these tools in action in these short videos:
DEXSG Dust extractor suction guide

DEXBC - Diamond Blade dust extractor

DEC125 - 125mm Diamond Cup Grinding Dust Extractor
