Wall Chasers

 Here is our range of Eibenstock wall chasers for sale in Perth, Western Australia.
They are all used for milling of slots and ducts in concrete, blocks and brickwork for pluming or electrical services.

Tip:
Some of these wall chasers have very big motors, so draw a lot of power.
Try to put your vacuum on a seperate circuit, or at least a seperate power point.
Use only heavy duty extension cords, and keep as short as possible.
This will allow the bigger saws to draw their rated power, and perform as specified.

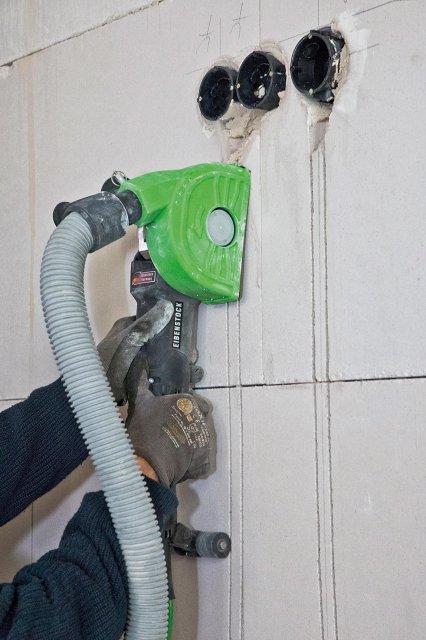

Eibenstock EMF125 Wall Chaser $750 (incl GST, blades & case)

Handy and lightweight - perfect for light duty electrical installations





Features:

  • Electronic - soft start, temperature control, constant speed
  • Locking for suction hose - avoids unintentional loosening of the hose during milling
  • Adjustable milling depth - without the need for a tool
  • Spindle lock - easy blade change
  • Slim design, small distance between dust hood and diamond blades for working up to 10 mm from the edge
  • Slot width of 7-30 mm adjustable in 1 mm increments
  • Closed hood - optimal air flow, easy removal of fragments
  • Machine works in cutting direction - allows a comfortable handling
  • Vacuum nozzle diameter - Ø 35 mm
  • Replacement blades from $35 each

TECHNICAL SPECIFICATIONS:
Voltage: 230V
Power: 1400W
Rated speed: 7000RPM
Maximum milling depth: 30mm
Maximum cutting depth: 30mm
Disc Diameter :125mm
Spindle: 22.23mm/7/8"
Machine Weight 3.5 kg

  • Comes with case, two concrete diamond blades, tools & manual.
  • 12 month commercial Australia wide warranty.

Eibenstock EMF150 Wall Chaser

The strong wall chaser up to 45mm milling depth


Features:

  • Powerful 2300 W motor
  • Electronic - soft start, temperature and over current cut-off, optical overload indication
  • Parallel handle position - comfortable working position
  • Locking for suction hose - avoids unintentional loosening of the hose during milling
  • Adjustable milling depth - without the need for a tool
  • Spindle lock - easy blade change
  • Slim design, small distance between dust hood and diamond blades for working up to 15 mm from the edge
  • Slot widths of 7 - 46 mm adjustable in 1 mm steps
  • Closed hood - optimal air flow, easy removal of fragments
  • Machine works in cutting direction - allows a comfortable handling
  • Vacuum nozzle diameter - Ø 35 mm
  • Replacement blades from $40 each
  • Dry only $1395 inc GST (no water fitting or RCD)
  • Wet and dry $1595  - shown.
    (When wet chasing, the suction nozzle is closed with a plug). Comes with RCD safety switch.

    TECHNICAL SPECIFICATIONS:
    Voltage: 230V
    Power: 2300W
    Rated speed: 4300RPM
    Maximum milling depth: 45mm
    Maximum cutting width: 46mm
    Disc Diameter :150mm
    Spindle: 22.23mm/7/8"
    Wet saw IP20 rating
    Machine Weight 6.1kg

    • Comes with case, two concrete diamond blades, tools & manual.
    • 12 month commercial Australia wide warranty.

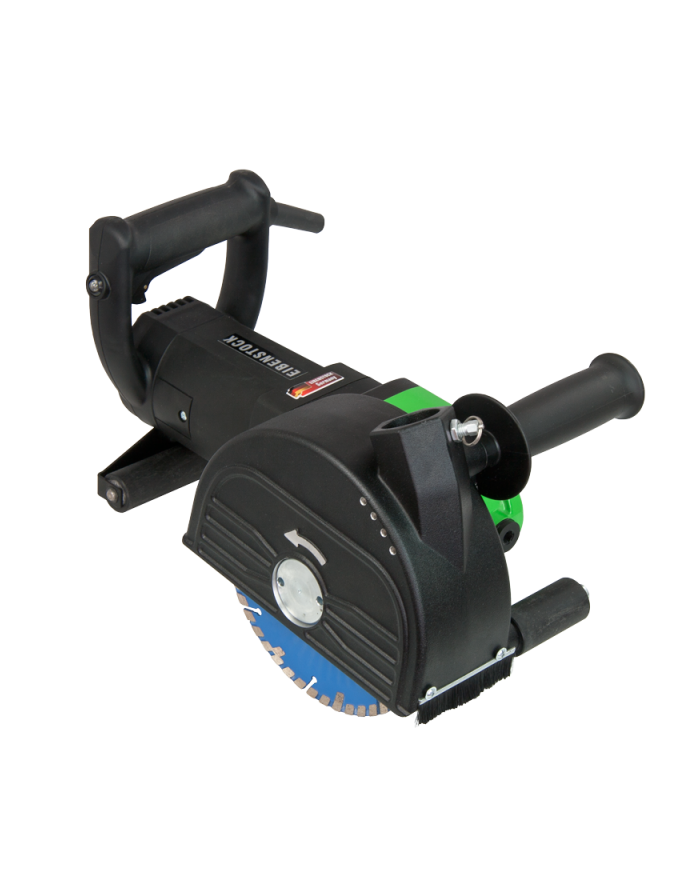

Eibenstock EMF180 Wall Chaser- $1895 (1/3/24)

The strong wall chaser up to 60 mm milling depth





Features:

  • Powerful 2300 W motor
  • Electronic - soft start, temperature and over current cut-off, optical overload indication
  • Parallel handle position - comfortable working position
  • Locking for suction hose - avoids unintentional loosening of the hose during milling
  • Adjustable milling depth - without the need for a tool
  • Spindle lock - easy blade change
  • Slim design, small distance between dust hood and diamond blades for working up to 15 mm from the edge
  • Slot width of 7-60 mm
  • Closed hood - optimal air flow, easy removal of fragments
  • Machine works in cutting direction - allows a comfortable handling

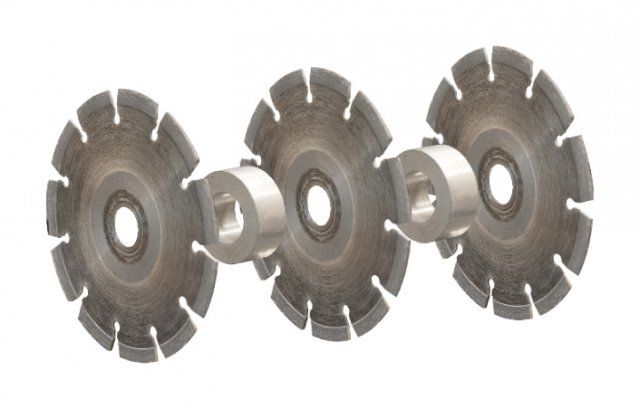

  • Optional EIBENSTOCK "Easy Break Out" - Fast breaking by a center slot - Distance disks for the using of 3 blades (extra cost)
  • Vacuum nozzle diameter - Ø 35 mm
  • See the Eibenstock EMF180 in action at the bottom of this page:
  • Replacement blades from $60 each

TECHNICAL SPECIFICATIONS:
Voltage: 230V
Power: 2300W
Rated speed: 2200RPM
No load speed: 3100RPM
Maximum milling depth: 60mm
Maximum cutting depth: 60mm
Disc Diameter :180mm
Spindle: 22.23mm/7/8"
Machine Weight 8.2kg

  • Comes with case, two concrete diamond blades, tools & manual.
  • 12 month commercial Australia wide warranty.

See the Eibenstock Easy Break Out System for the EMF150 and EMF180 here:

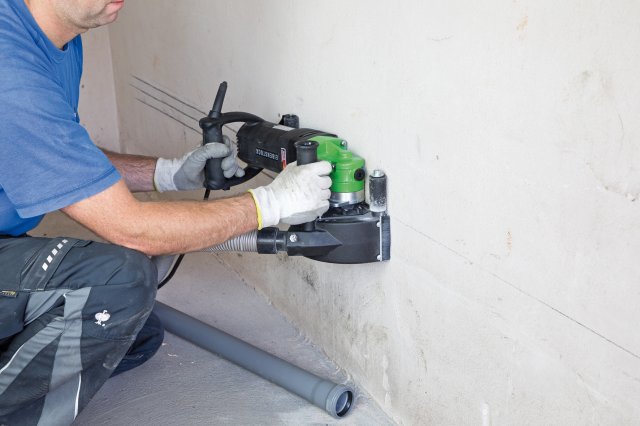

See the Eibenstock EMF180 in action here:

  • Bigger wall chaser have big motors - ensure there is sufficient power available to run them
  • Do not run off generators - they may not be 240 volt, 50Hz, or are usually too small for the drill
  • Use only heavy duty (2.5mm minimum but preferably or 4mm) extension cords and keep them as short as possible  (under 20m).
  • Put vacuums on a seperate circuit so as not to overload each circuit.

For the operation and spare parts manuals for these machines  Click Here

See our wall chaser blades here

Silica dust - when workers cut, saw, crush, drill, polish or grind products that contain silica, particles are created, which are one-hundredth of the size of a grain of sand. These can get  stuck deep in the lungs.
Ensure precautions to limit exposure to dust are in place.
See the WA government's info on silica dust here.

Prices correct as of 1/6/24 but subject to change
