Plate Compactors

United Diamond Tools supply the compactors as used by the hire and construction industries, with a full warranty and local parts and service back up.

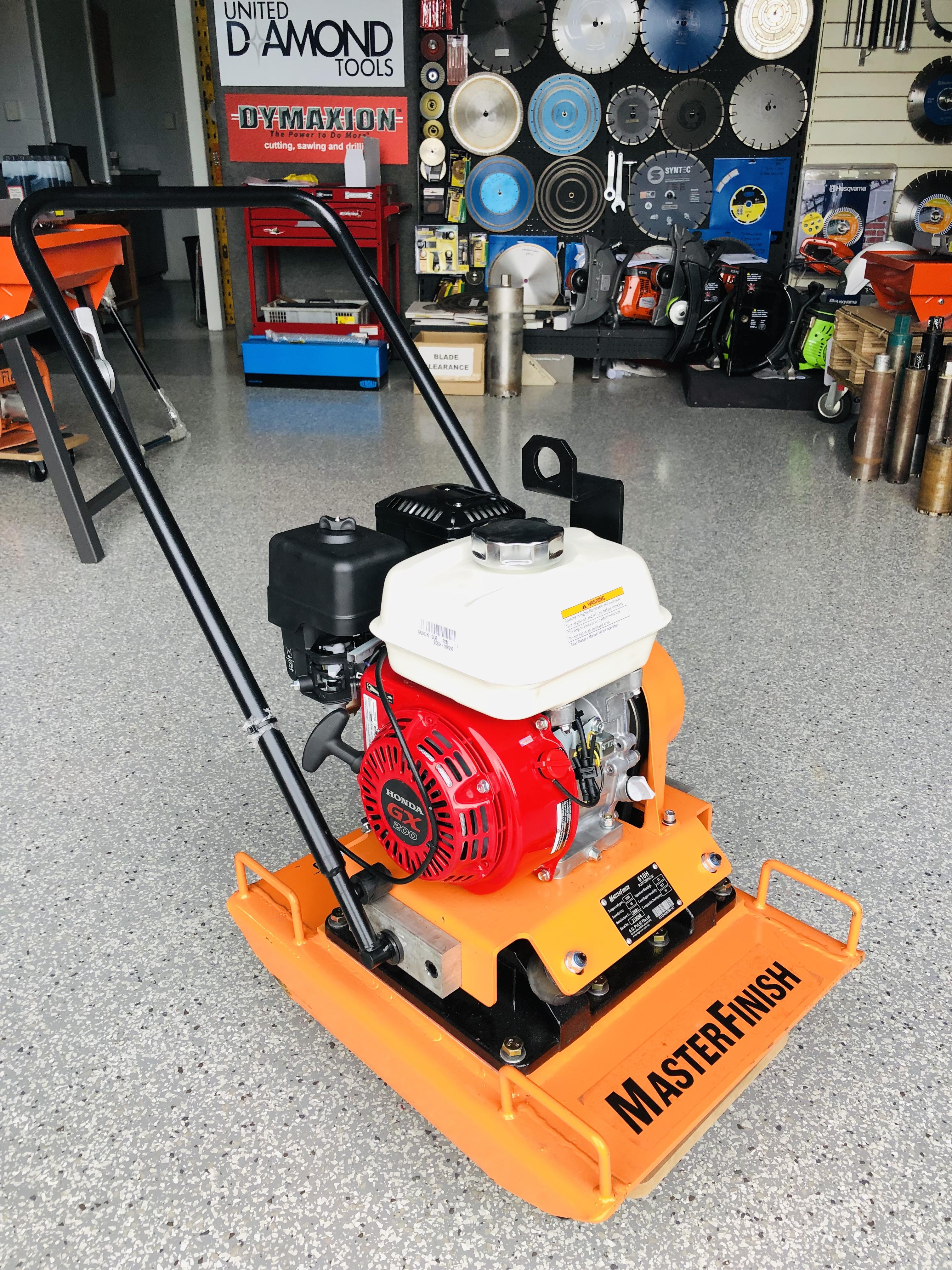

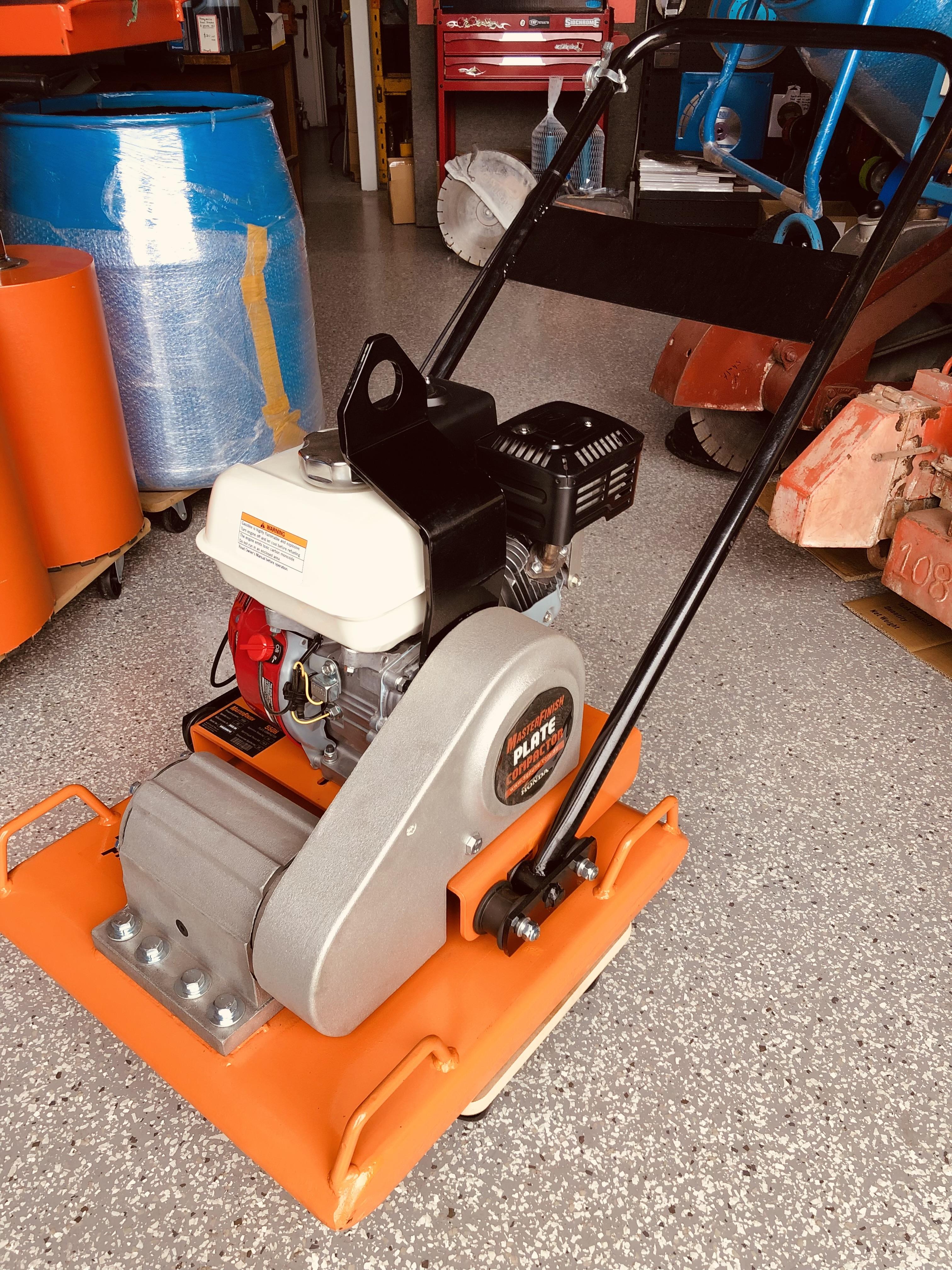

Master Finish Model 610H Compactor

$1650 incl GST



This Master Finish 610H Compactor  offers excellent value for money as well as rugged reliability.
 - Using a genuine Honda GX200 petrol motor
 - Ideal for landscapers, brick pavers and related trades.
 - Heavy-duty shock mounts reduce vibration to the upper engine and handle for more comfortable use
 - Exciter is centrally mounted and fully enclosed for an even spread of compactive force over the whole base plate
 - Grease filled exciter under motor

Specifications:
 - 0-20 metres per minute operating speed.
 - 19kn centrifugal force.
 - 7000 VPM
 - Approx 30cm compaction depth
 - 20 degrees climbing ability.
 - 460 x 610mm – plate dimensions.
 - 93kg weight

Normally $1850 incl GST
Jan Feb special $1650

Easymix Model 550H Compactor

$2050 inc



Easymix 550H plate compactor:
With a solid, high-strength steel base plate with curved edges which provides top performance.
Fitted with a lifting hook and anti-vibration flip over handle for easy transportation.

The exciter is front mounted meaning the plate compactor has the ability to pull itself through softer material with greater ease.
The exciter uses sealed bearings so no need for oiling.
Warranty: 1 year machine and 3 year Honda.

  • Weight:  98kgs
     - Engine:  Honda GX200
     - Plate Width - 500mm
     - Plate Length - 550mm
     - Vibrating System:  Eccentric Rotation
     - Centrifugal Force:  19.8Kn
     - Frequency: 7000vpm
     - Compaction Depth:  30cm approx
     - Travel Speed:  33cm/sec max

Replacement rubbers $40 ea Incl GST

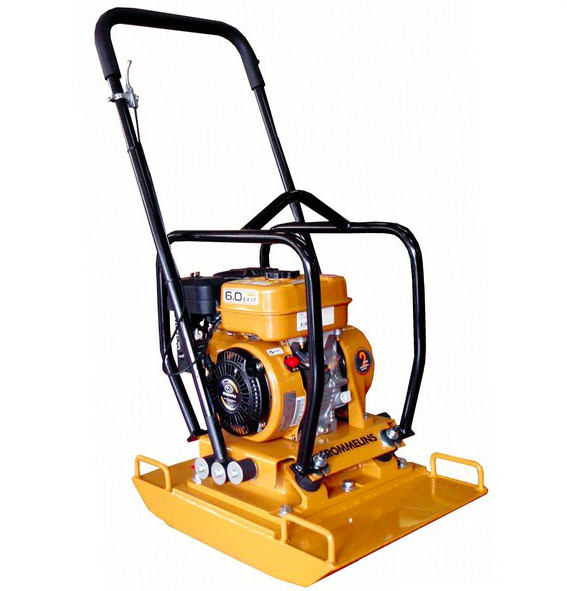

Crommelins CC90R





The 6.0hp CC90R Crommelins Plate Compactor is a popular choice for pavers, general contractors and rental companies as they are designed for compaction jobs in residential, commercial and light industrial applications.
  • Assembled and tested in Australia
  • Genuine Robin industrial engine (Honda option also available at approx $50 extra charge)
  • Soft grip handle
  • Special front clamp enables fitting of an isolation mat to dampen the impact when compacting on brick paving
  • Heavy duty lifting hook
  • Precision robotic welded
  • 84kg
  • 16.5kN
Ideal for:
  • Soil
  • Brick paving
  • Road base

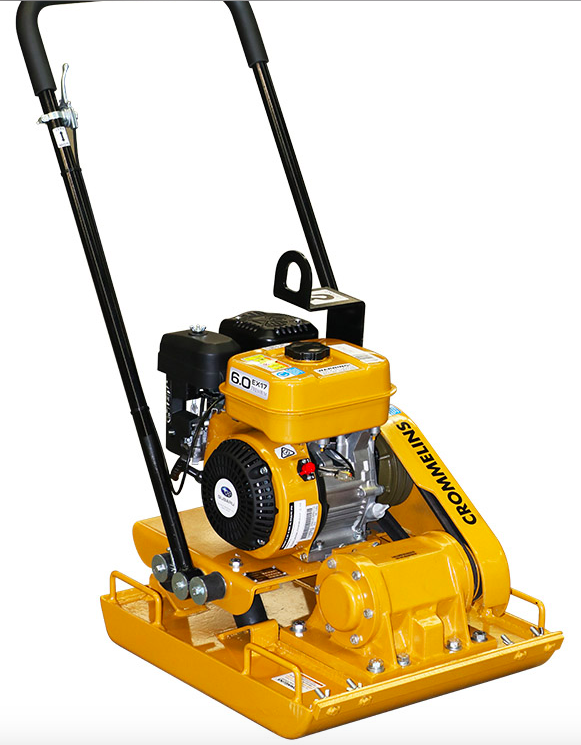

Crommelins CC70R





The 6.0hp CC70R Crommelins Plate Compactor is a popular choice for pavers, general contractors, councils and rental companies as it is designed for compaction jobs in residential, commercial and light industrial applications.

This fast and powerful compactor will handle heavy duty jobs. The reversible handle makes it easy to manoeuvre and the soft grip handles reduces vibration to the operator.

  • Assembled and tested in Australia
  • Soft grip handle
  • Powerful 6.0 hp Robin engine (Honda option also available at approx $50 extra charge)
  • Fast travel speed for increased productivity
  • Reversible handle with easy to reach throttle control
  • Compact design with central enclosed exciter for even compaction force
  • Lifting hook and engine protection frame
  • Precision robotic welded
  • 82kg
  • 18kN

Crommelins CC60R





The 4.5hp CC60R Crommelins Plate Compactor is highly popular with contractors and the hire industry, due to the folding handles allowing it to fit in the boot of a car, the fold-down wheels and lifting hook.


  • Genuine 4.5HP Robin engine (Honda option also available at $50 extra charge)
  • Assembled and tested in Australia
  • Folding handles enables the  unit to fit into the boot of most cars
  • Lightweight
  • Wheels for easy portability on and off site
  • Lifting hook for easy transportation
  • Precision robotic welded
  • 68kg
  • 12 kN

For the operation and spare parts manuals for these machines  Click Here

Compactor clutches:
Compactor Clutch - suit 5 to 6HP engines.
125mm/5"
Single or twin belts, 19mm or 20mm (all options same price)
$360 incl GST

img_2781.jpeg img_2782.jpeg img_2787.jpeg img_2788.jpeg

Troubleshooting:

Assuming engine is running correctly and at full power, if compactor travel speed is low, or vibration is weak, start by checking:

  • Belts slipping - tighten or replace
  • Clutch slipping - check or replace
  • Excessive grease or oil in exciter - clean and replace with correct amount
  • Malfunction in exciter - check bearings, eccentric, gears etc

Prices correct as of 1/2/24 but subject to change.
