Plate Compactor Spare Parts

ORDER SPARE PARTS HERE

To see our range of downloadable manuals:

Spare parts manuals Click Here

Operation manuals Click Here

See our new compactors Click Here

I carry some common parts for late model Crommelins, Easymix and Trademade (TMP) plate compactors (under 100kg).
Some parts may fit Westmix, but you need to check. Westmix do not sell parts anymore.
I do not repair compactors, but have tried to give you enough info so you can fix it yourself.

Compactor clutches:

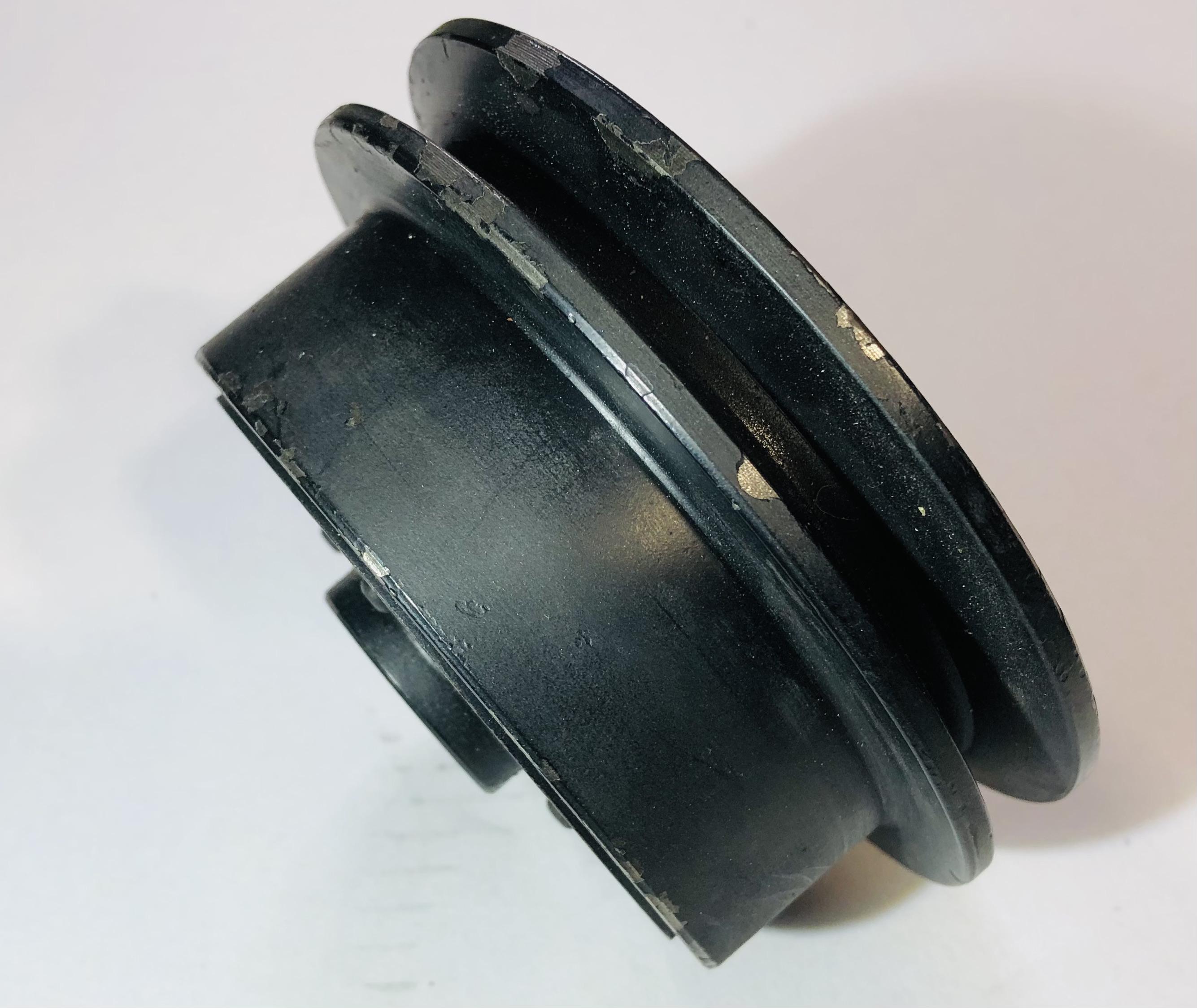

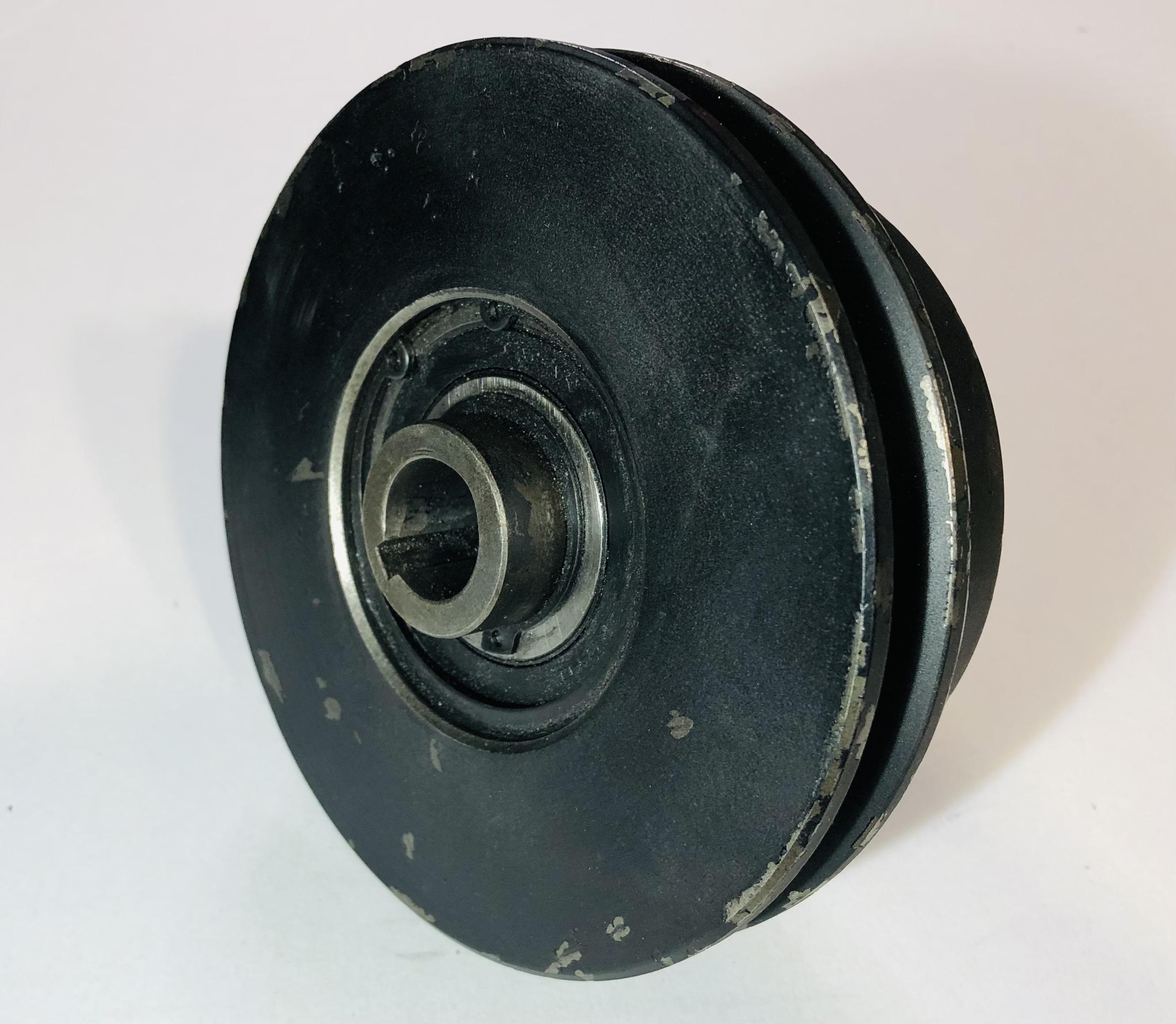

Compactor Clutch - suit 5 to 6HP engines.
125mm/5"
Single or twin "A" belts, 19mm (3/4") or 20mm (all options same price)
$380 incl GST
.

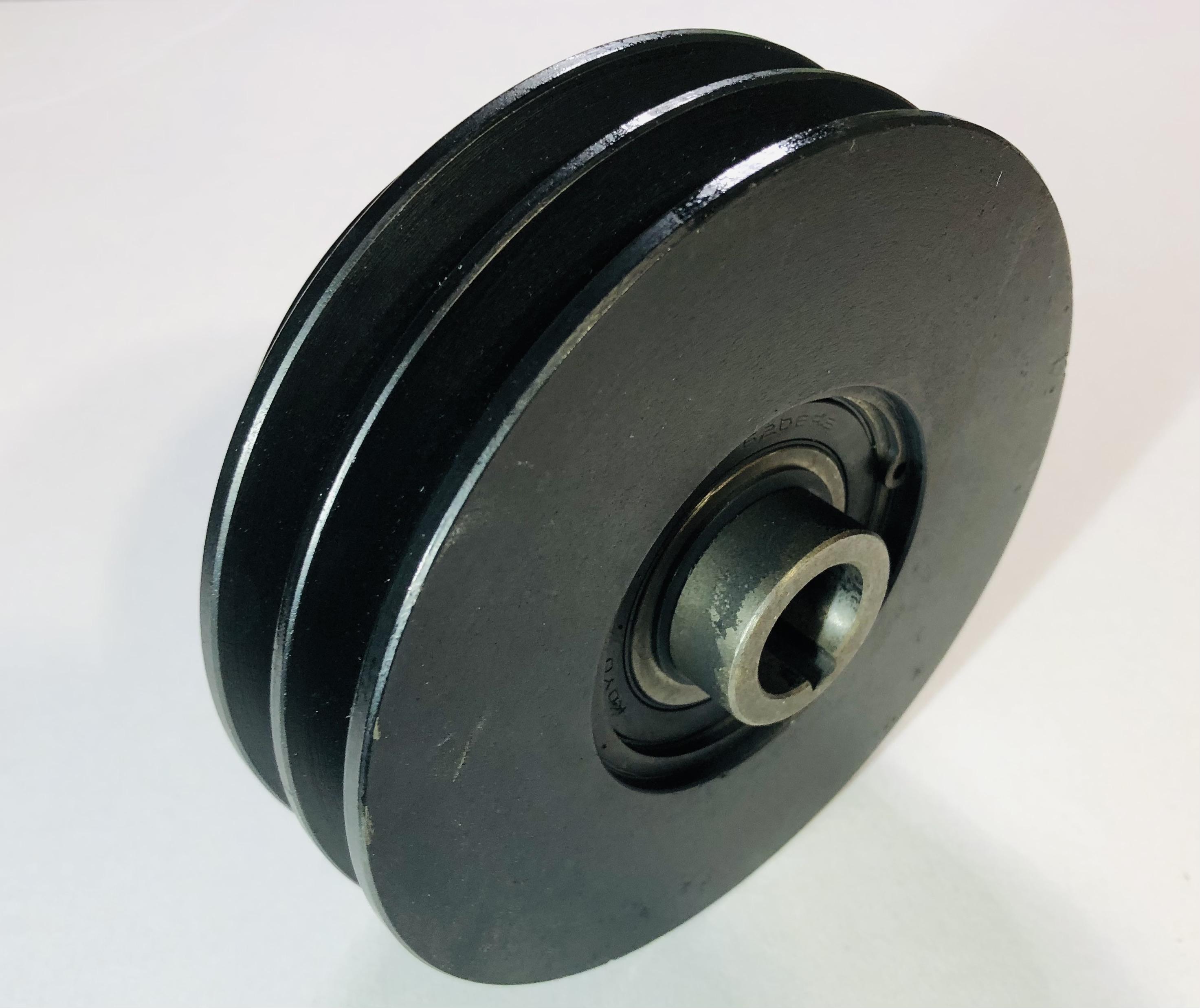

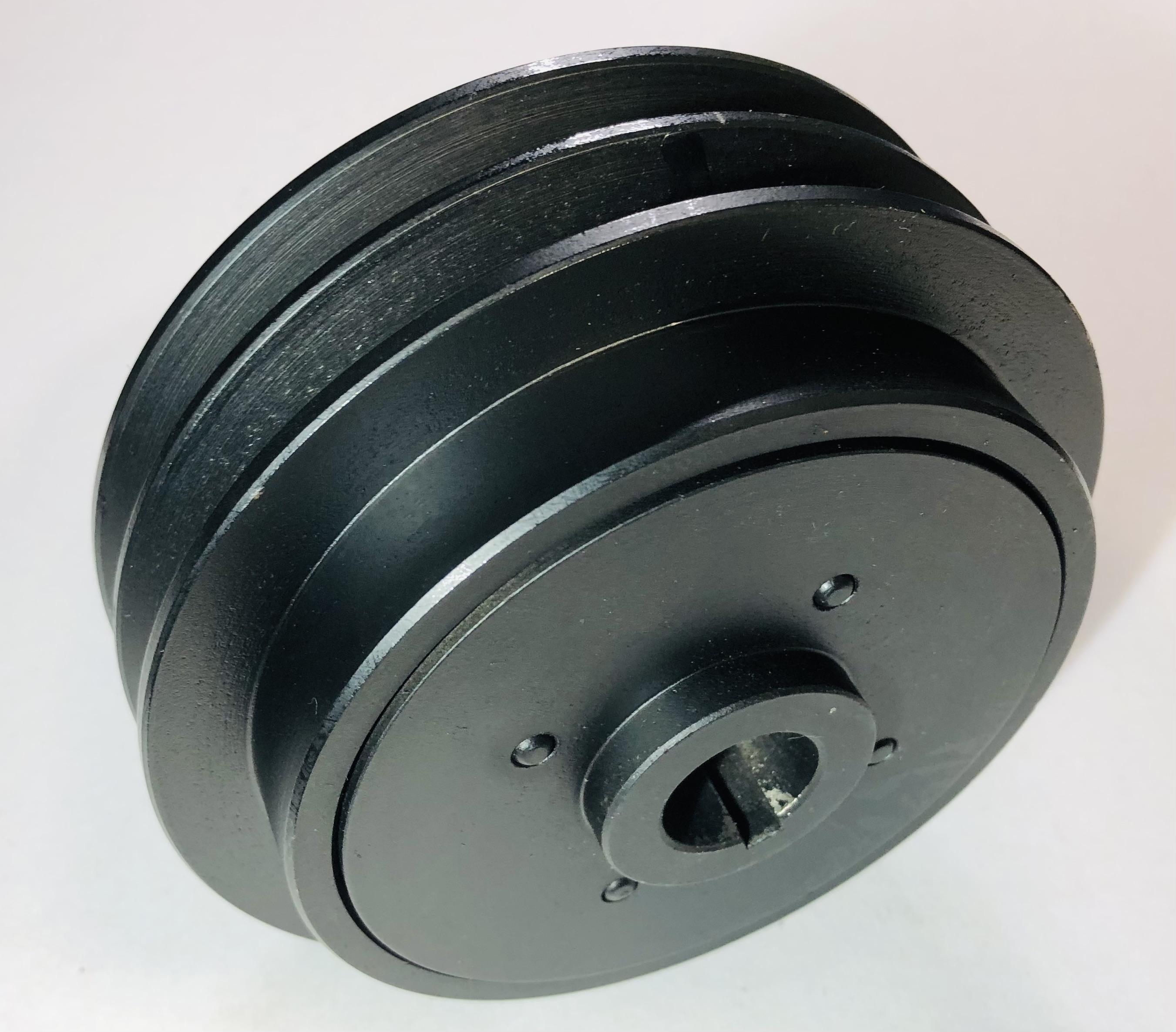

Easymix Compactor Clutch, suit 550H.
125mm, 2 x "A" Belts, 19mm centre
$450 incl GST

Compactor Rubbers:
These are industrial standard, and out perform the cheaper versions available.

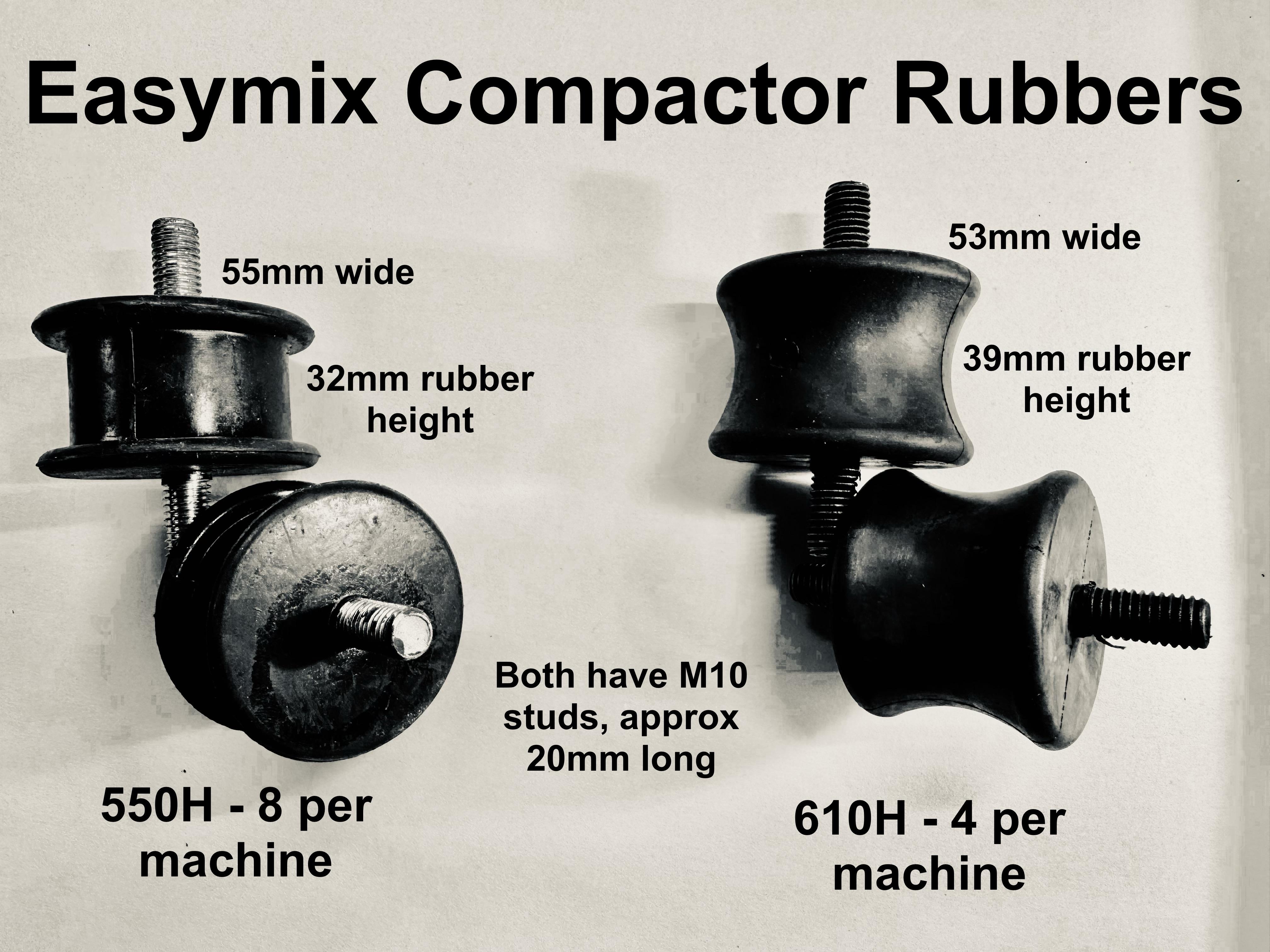

Compactor Rubbers to suit Easymix 550H.
Square profile. No nuts.
550H - 8 in total per machine (4 on handle, 4 on base plate)
Will fit Easymix 610H if all rubbers replaced at once - 4 in total per machine (4 on base plate) but may need new shorter belt.
Should also fit Westmix compactors, but check measurements below.
$40 each Incl GST

Easymix 610H rubbers:
Curved "waist".
May 2025 - no longer available.
Replace with 550-10 rubbers (may need a shorter belt).

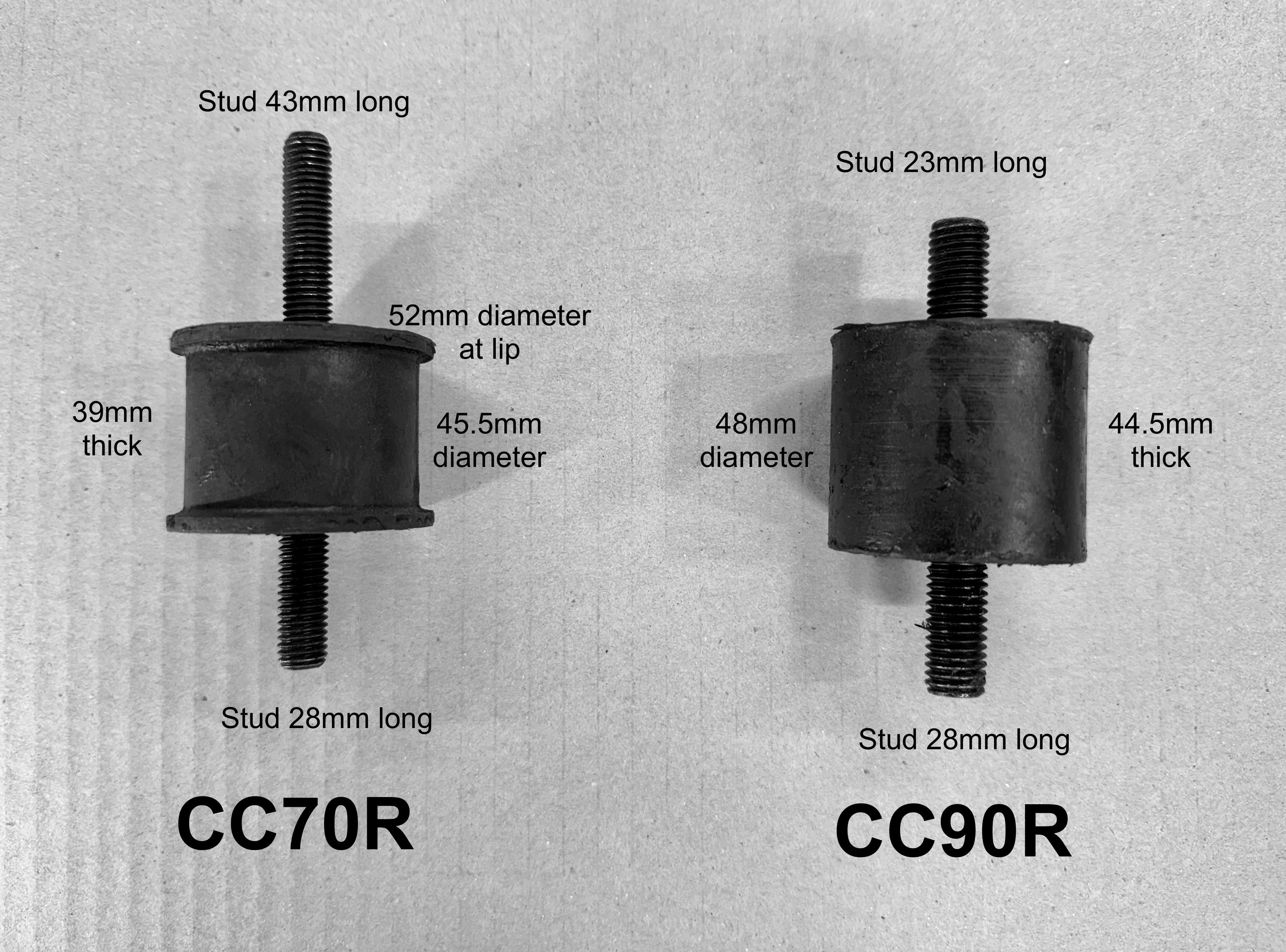

Crommelins compactor rubbers:
CC70R & CC90R - as detailed below.
$40 each

Belts:
A29 or A30 (usually marked on belt):
$30 each Incl GST
610H uses one belt, 550H uses two.
Purchase from your local belt supplier (Repco, bearing supplier, power drive supplier etc).
Take your old belt in to match.
The tension of a new drive belt may need readjusted after a couple of days of use

Engine spare parts:
Contact your local engine parts dealer eg a Honda dealer, Crommelins Machinery for Robin and Subaru etc

Troubleshooting:

Assuming engine is running correctly and at full power, if compactor travel speed is low, or vibration is weak, start by checking:

• Belts slipping - tighten or replace
• Clutch slipping - check or replace
• Excessive grease or oil in exciter - clean and replace with correct amount
• Malfunction in exciter - check bearings, eccentric etc

ORDER SPARE PARTS HERE

Prices correct as of 1/4/25 but subject to change.
