Brick Saw Spare Parts

To see our new brick saws, see here.

ORDER SPARE PARTS HERE

To see the range of downloadable manuals:

Spare parts manuals Click Here

Operation manuals Click Here

I carry some common parts for late model Husqvarna, Easymix and Trademade (TMP) brick saws.
Some parts may fit Westmix, but you need to check. Westmix do not sell parts anymore.
(Crommelin's bricksaw is similar to the TMP, but is modified. Contact them for parts).
I do not repair brick saws, but have tried to give you enough info so you can fix it yourself.

I carry selected brick saw parts for sale in stock, such as tray rollers, mitre blocks, blade lock nuts etc for Easymix,  Husqvarna (TS300E, TS350E and TS450F), Crommelins CBS114E and Trade Made saws.
On/off switch (TMP) - $99 incl GST
Bricksaw blade nut Wrench - suit Husqvarna & TMP (not Kaladari ) $21 inc GST
HD Bricksaw 30mm spanner $30 incl GST
*** Note - usually opposite thread on brick saw nuts

Easymix brick saws belts:
Usually  two SPZX1140 toothed belts
$40 each Incl GST

Brick saw tray rollers:
40mm dia (each) (Suit older brick saws)
  - $35 each
44mm dia (each) (Suit Westmix, Crommelins, TMP, BT brick saws)
 - $30 each or $100 for set of 4 (with nut and bolts)
Husqvarna Bricksaw tray roller 40mm Dia (each). Suit TS300/TS350/TS400.
 - $26 each  (Nut and bolts $3 each extra)
(32mm and 38mm for old TMP brick saws no longer available).

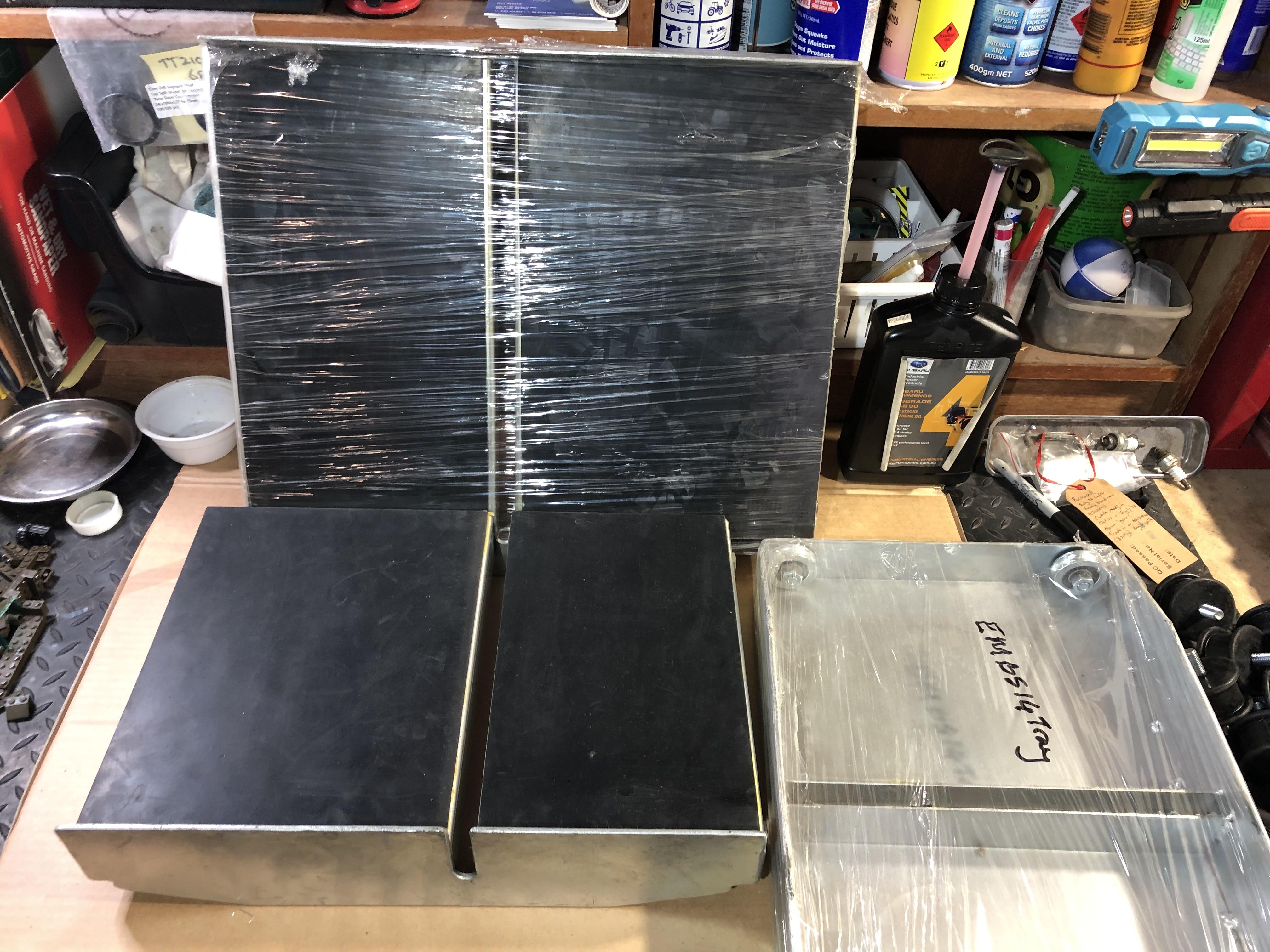

Easymix/TMP Brick saw trays: Includes rollers and bolts, but not mitre block.  - Suit 14"/350mm saw -  $225 (roller rails - 410mm wide Tray 300mm deep, 440mm wide. Centre blade slot 190mm from right edge) - Suit 16"/400mm saw -  $275 (roller rails - 470mm wide, Tray 410mm deep, 495mm wide. Centre blade slot 220mm from right edge)

Husqvarna Brick saw trays:
Includes rollers and bolts, but not mitre block.
 - Suit TS300 -  $270 inc GST
- Suit TS350 -  $410 inc GST
- Suit TS400 -  $430 inc GST
Husqvarna Bricksaw tray roller 40mm Dia (each). Suit TS300/TS350/TS400.
 - $26 each  (Nut and bolts $3 each extra)

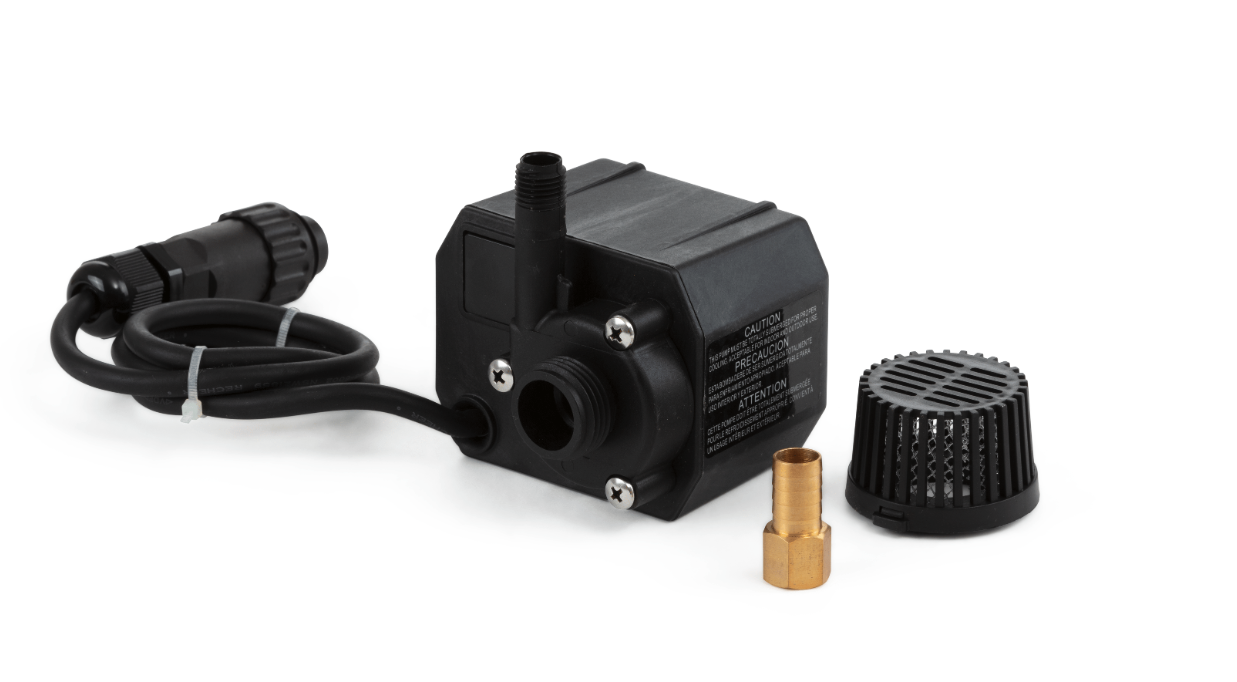

Husqvarna (TS300E, TS350E and TS400) parts: - On/off switch and lead (suits TS300/350/400) - $185 incl GST - Motor capacitor (suits TS300/350/400) - $45 incl GST  - Water Pump to suit TS300 only - $210 Incl GST - Water Pump to suit TS350 & TS400 - $205 Incl GST (If your bricksaw only runs when button held down, your pump has likely failed and needs replacement)

Adjusting blade on Husqvarna TS range of brick saws

Download the Husqvarna TS Brick saw adjustment guide

Servicing water pump on Husqvarna TS brick saws

Download servicing water pump on Husqvarna TS Brick saws

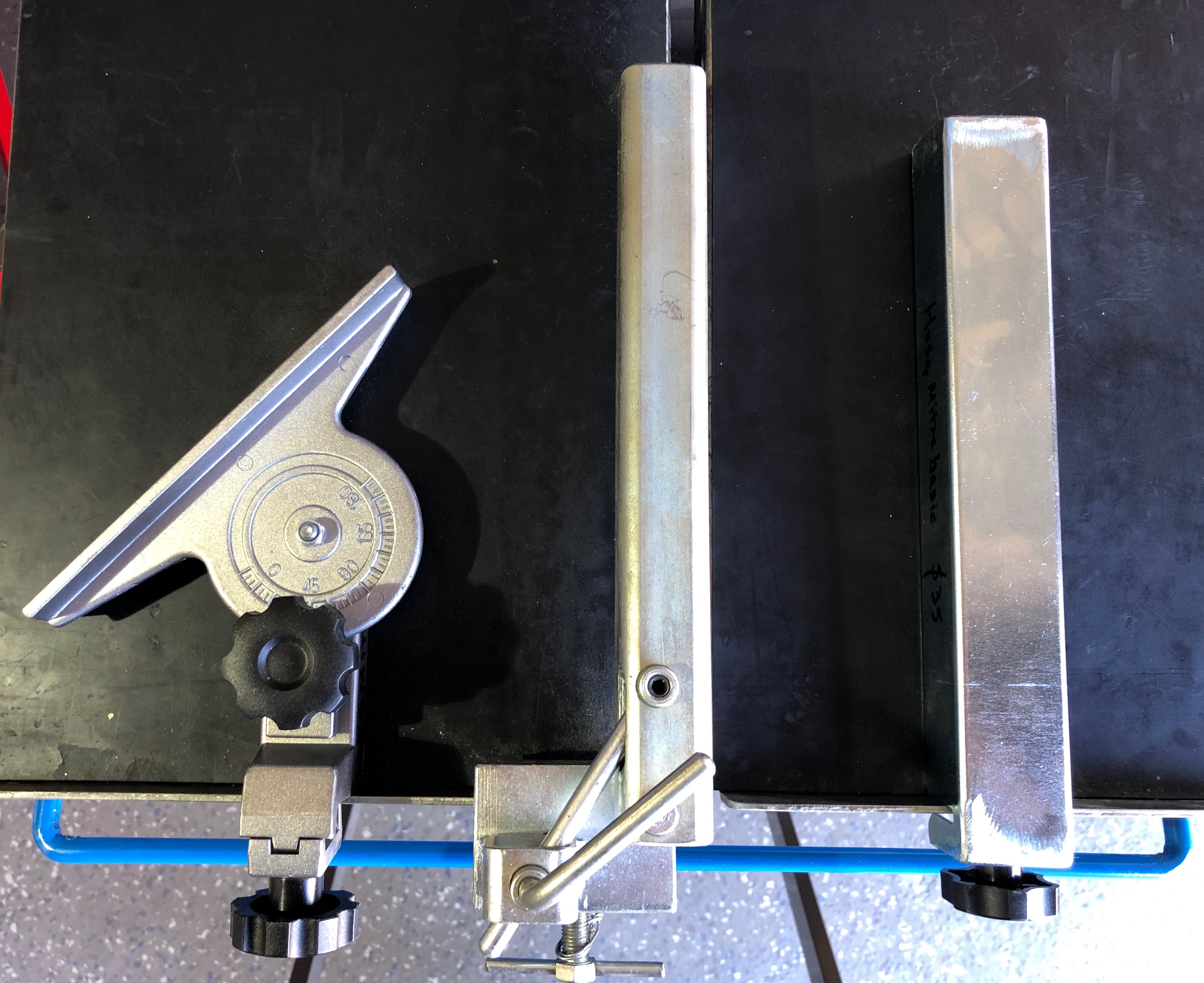

Mitre blocks/cutting guides:
Husqvarna 90 degree $40 each incl GST (on right)
TradeMade (TMP) 45°/90° only $50 each incl GST (not shown)
Husqvarna variable angle $80 each incl GST (on left)
Easymix, TradeMade (TMP) variable angle $75 each incl GST (in middle)

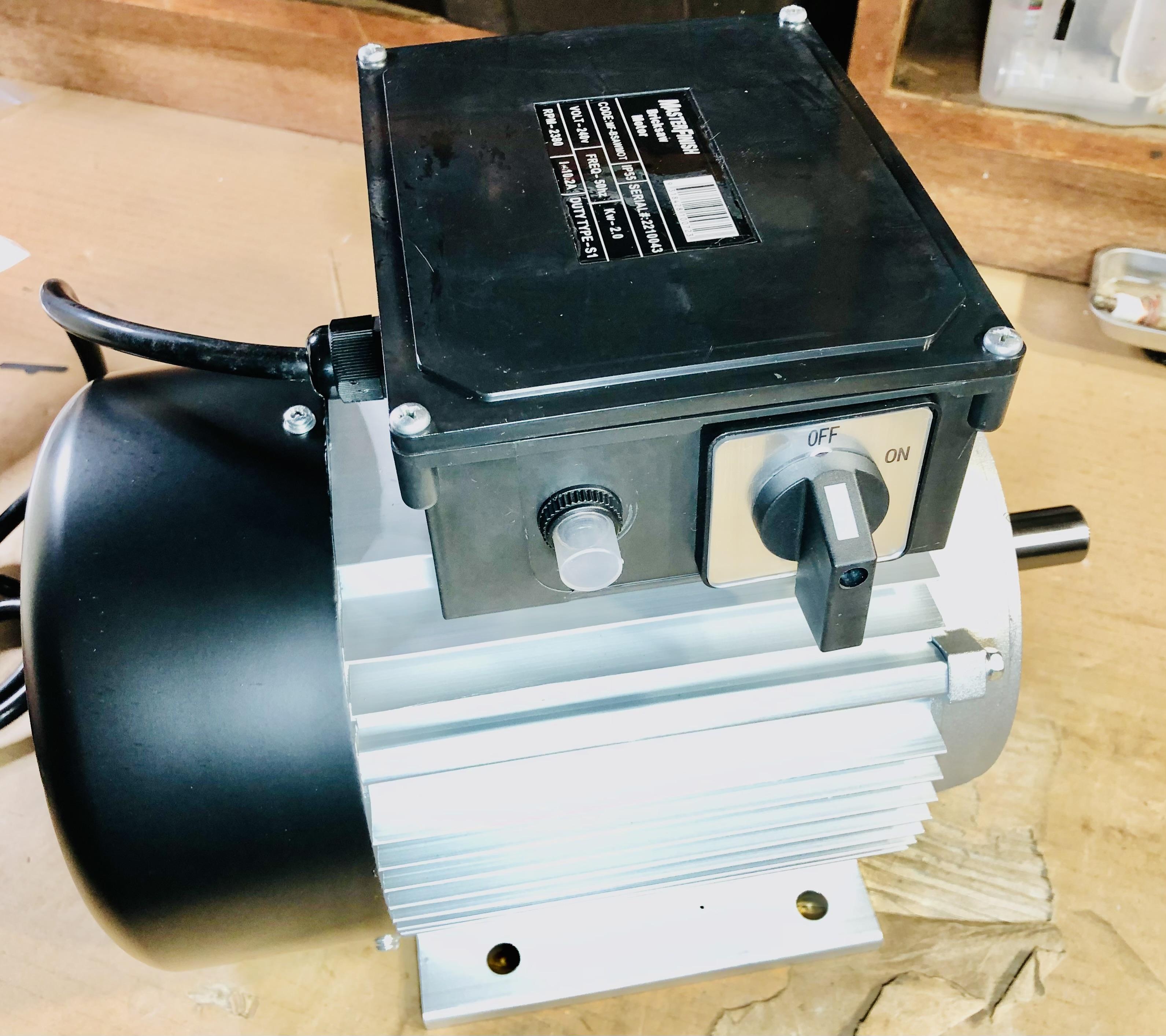

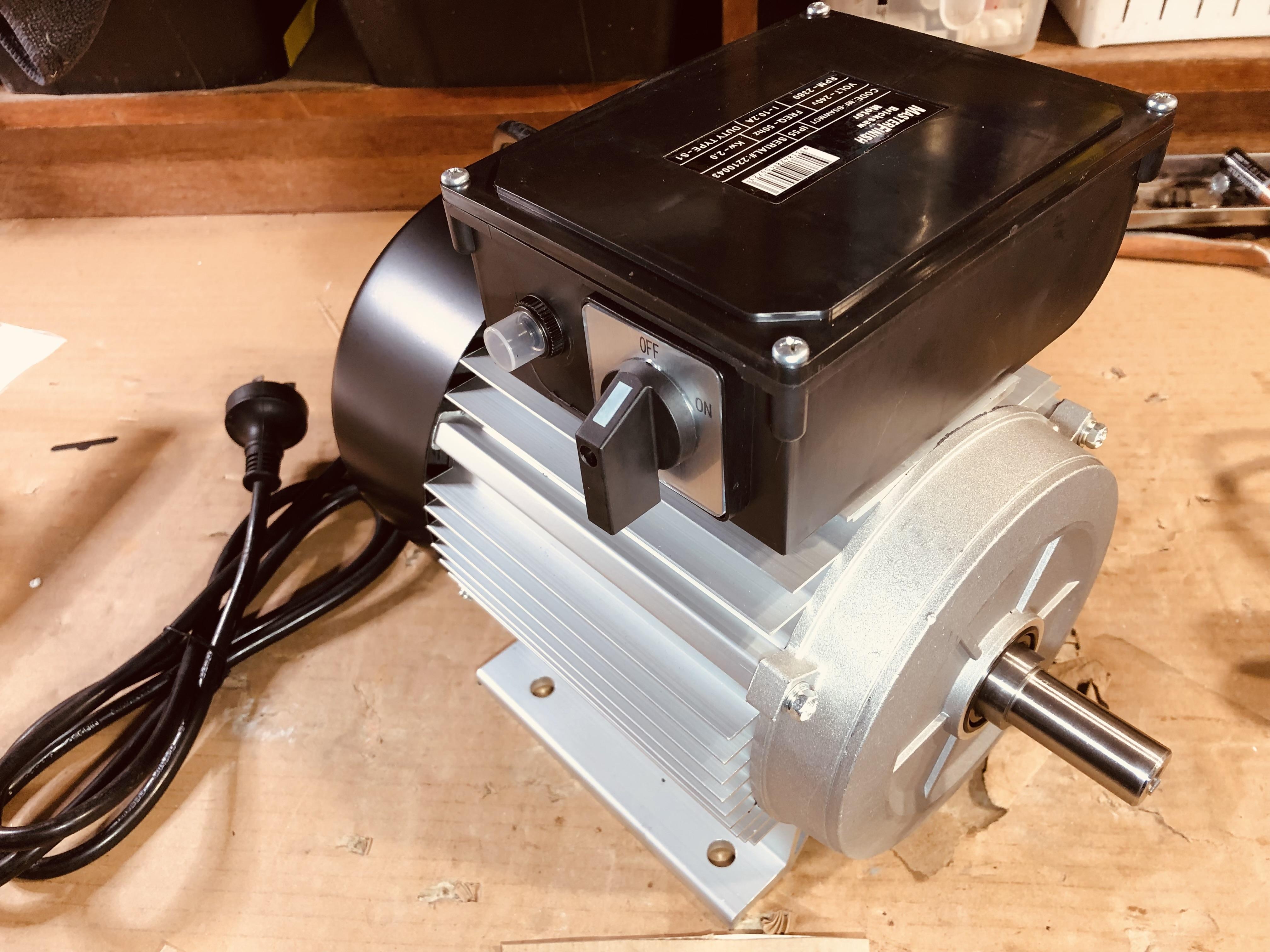

Easymix brick saw motor:
With on off switch and lead and plug
2kW, 2380 RPM, IP55
40mm long out put shaft, 19mm diameter with 5mm key
Shaft turns anti clockwise when viewed from shaft end.
Old pulleys should interchange with new, otherwise purchase taper lock from local bearing supplier.
Foot holes - 100mm x 140mm
Should fit Trademade (TMP) and Easymix bricksaws
$599 incl GST

Bricksaw motor parts and repairs:
Your local electric motor repair shop should be able to match up the old capacitor(s), other motor parts and repair if required.
 - 20 amp overload - suits most bricksaw motors $20

• Brick saw motors are splash proof, not waterproof (usually IP55).
  Many motor problems occur in Winter when motors are exposed to heavy rain.
• Brick saws have big motors - ensure there is sufficient power available to run them
• Do not run off generators - they may not be 240 volt, 50Hz, or are usually too small for the motor
• Use only heavy duty (2.5mm minimum but preferably 4mm) extension cords and keep them as short as possible (under 15m).
• Put any other machinery on a seperate circuit so as not to overload each circuit.
• Easymix saws - always fit pin that locks saw to stand!

Prices correct as of 1/5/25 but subject to change.

ORDER SPARE PARTS HERE

Tips:
The brick saws draw a lot of power, but still do not have the same power as a petrol saw.
To maximise their efficiency, we suggest the following:

• Use softer blades - these enable the saw to cut better. Hard saw blades can overload your electric saw, or cause it to overheat (constant overheating causes your motor to fail prematurely).
• Leads - use only heavy duty extension leads. Keep them as short as possible (under 15m).
• Do not run off generators - the voltage may not be 240 volt or 50 Hz. Also, they are often too small for the brick saw motor. 8kVA usually recommended (yes, 8kVA!).
• Allow the blade to cut - don't force it!
• Motor overload will trip if: leads too long or too light duty; faulty power (running off generator or incorrect power supply); pushing pavers in too hard; blade bond too hard. Try saw on another power supply. If the overloads trip out too often, they can get damaged.
• Electric motors are usually IP55 rated, which is protected against dust ingress, and water resistant (but not water proof). Most electrical problems occur after the saws have been left in the rain.

Faulty motors:

• Press in the motor overload that is next to on/off switch and try again.
• Check main switchboard has not tripped
• If saw starts and trips out overload or switchboard straight away, then motor or overload may have failed.  If the overload trips out too often, they can get fail and will need replacement.
• Motor overload will trip if: leads too long or too light duty; faulty power (running off generator or incorrect power supply); pushing pavers in too hard; blade bond too hard.
• If motor hums when switched on, or starts slowly with a growling noise, the start capacitor is likely to have failed. If you switch on and motor hums, but only starts when blade given a push (keep fingers clear!!), capacitor has failed. An electric motor repair shop should be able to match up/replace the old capacitor(s).  Start capacitors only have a certain amount of starts in them, and will fail sooner if turned off/on too often eg every time you want to cut one paver.
• Try saw on another power supply, ideally at another location.
• I sell complete motors only. Google "electric motor repairs" for your local motor repair store.

Silica dust - when workers cut, saw, crush, drill, polish or grind products that contain silica, particles are created, which are one-hundredth of the size of a grain of sand. These can get  stuck deep in the lungs.
Ensure precautions to limit exposure to dust are in place.
See the WA government's info on silica dust here.

Disclaimer: the information on this website is provided in good faith and believed to be reliable and accurate at this time. However, the information is provided on the basis that the reader will be solely responsible for assessing the information and its veracity and usefulness. UDT shall in no way be liable, in negligence or howsoever, for any loss sustained or incurred by anyone relying on the information, even if such information is or turns out to be wrong, incomplete, out-of-date or misleading.
